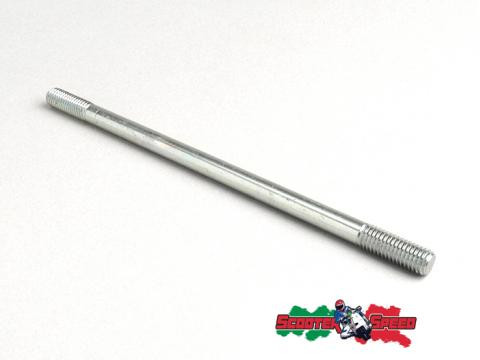

Stud Cylinder - M8 x 163mm -M8 x 163mm -BGM ORIGINAL- (used for cylinder Vespa PX200 (VSX1T), Cosa200 (VSR1T), Rally180 (VSD1T), Rally200 (VSE1T), SS180 (VSC1T), GS160 / GS4 (VSB1T), Lambretta (LI, LIS, SX, TV, DL, GP)

BGM ORIGINAL stud bolt for fastening the cylinder and cylinder head to the engine housing

PASSENGER
Suitable for Vespa largeframe engines from 160ccm displacement (ex works), e.g. Vespa PX200, Rally180/200, GS160, SS180, Cosa200, also suitable for Lambretta Series 1-3 engines.

SPECIALITIES

ROLLED THREAD
The thread of the cylinder stud bolts is rolled, not cut.
Thus the BGM ORIGINAL stud bolts have a very high tensile strength.

DIFFERENT DIAMETERS
Another special feature is the different core diameter of the threads. The side that is screwed into the engine housing has a slightly larger core diameter than the cylinder head side. This oversize allows the bolts to be screwed into the engine housing somewhat tighter. Thus they always remain in the housing when loosening the cylinder head nuts and do not rotate.

• Lambretta

  • LI 125 (series 1)
  • LI 150 (series 1)
  • LI 125 (series 2)
  • LI 150 (series 2)
  • TV 175 (series 2)
  • DL/GP 125
  • DL/GP 150
  • DL/GP 200
  • LI 125 (series 3)
  • LI 150 (series 3)
  • LI 125 Special
  • LI 150 Special
  • X 150 Special
  • X 200 Special
  • TV 175 (series 3)
  • TV 200
  • GP 125 (SIL)
  • GP 150 (SIL)
  • GP 200 (SIL)
  • Eibar LI 125 (series 2)
  • Eibar LI 150 (series 2)
  • Eibar TV 175 (series 2)
  • Serveta 200 Jet
  • Serveta 125 Lince
  • Serveta 150 Lince
  • Serveta 200 Lince
  • Serveta 125 Special
  • Serveta 150 Special
  • Serveta 125 Scooterlinea
  • Serveta 150 Scooterlinea
  • Serveta 175 Scooterlinea
  • Serveta 200 Scooterlinea
• Vespa

  • 150 GS (VS1T)
  • 150 GS (VS2T)
  • 150 GS (VS3T)
  • 150 GS (VS4T)
  • 150 GS (VS51T)
  • 160 GS (VSB1T - 1962)
  • 160 GS (VSB1T - 1963)
  • 180 Super Sport (VSC1T)
  • 180 Rally (VSD1T)
  • 200 Rally (VSE1T - Femsa)
  • 200 Rally (VSE1T - Ducati)
  • 200 Cosa CL (VSR1T)
  • 200 Cosa CLX (VSR1T300)
  • 200 Cosa FL (VSR1T301)
  • 200 P E (VSX1T - -1980)
  • 200 PX E Lusso (VSX1T - 1984-97)
  • 200 PX E (VSX1T - 1981-83)
  • 200 PX E FL (ZAPM18 - 1998-)
